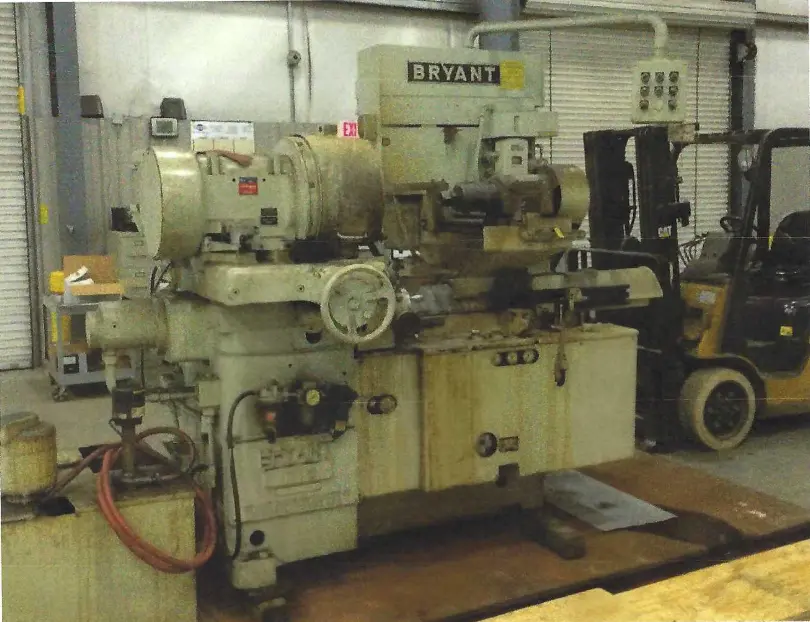

1971 BRYANT 1116
Internal Grinders
No. 1116 Bryant, 16" Swing, 20" Stroke Max Traverse, 8" Grind Stroke, New 1971, STK 1435-P
| Swing | 16 mm |
| Stroke | 0.3758 mm |
| Travel-Long | 20 mm |
| Workhead Swivel | 45 degrees (will grind 90 degrees included angle) |
| Workhead Speed | -50,650 RPM |
Catalog Specification:
Bryant Model 1116
New 1971
SN- N14020
Total Chuck Swing (without guard ) workhead on center: 16"
Traverse Stroke (Max) : 20"
Grinding Stroke: .375 to 8"
Work Spindle RPM (either Direction of rotation): 50-to 650
Table Movement --- Forward: 7"
Table Movement----- REAR : 2.75"
Work head adjustable to: 45 Degrees
Note: will grinder 90 degrees included angle
Bryant Cartridge Spindle
Hydraulic Single poit Diamond Dresser
Cam Lock Work Head
Face Stop
Attached Electrical
Compensation
