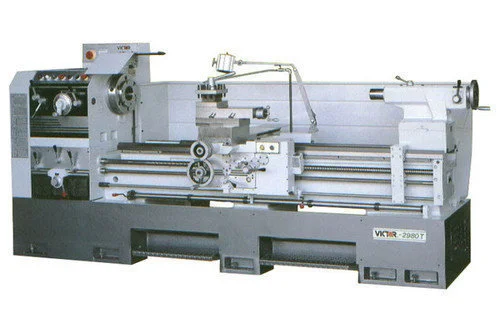

New VICTOR 29170T | Engine Lathes

Description

Tough built to last with large 4-1/8" spindle bore, 4-way rapid traverse, and 20 HP main motor. The best in its class to handle utmost demanding work.

FEATURES:

High precision hardened and ground spindle
Hardened and precision ground induction bedways with high tension mechanize casting iron
Spindle is supported by 3 bearings (2 taper roller bearings and one ball bearing)
4-1/8" large spindle bore with D1-11 camlock spindle nose
Rapid and positive magnetic disc brake system is operated by emergency switch control or foot brake
All running parts are lubricated by a pressure pump in gearbox
Sliding, surfacing, and screw-cutting motions are fully interlocked in apron
A cone-clutch device in the apron to prevent overload
Dual speed tailstock quill (ratio 1:1 and 1:4) provides easy drilling operation
4-way power rapid traverse
Ampere meter for power consumption monitoring
Jog button for easy spindle speed changes
20 HP main motor
