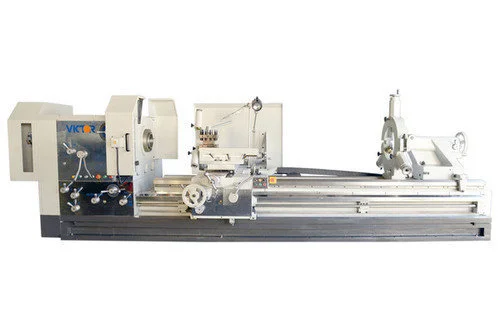

New VICTOR 3560PA | Oil Field & Hollow Spindle Lathes

Description

The massive construction heavy-duty oil country lathe engineered to deliver extremely powerful cutting capability and maximum stability. It comes standard with 6" large spindle bore and option up to 24". Between centers distance is up to 360" long. Easy to operate mechanical power feed and rapid travel for saddle, cross slide, and tool post.

FEATURES:

Heavy duty hollow spindle lathe, optional up to 24" spindle thru hole
Hardened and precision ground gears in headstock
Hardened and ground bedways
Spindle is supported on 2 opposed directions by precision taper roller bearings at the front and rear
Massive heavy-duty headstock and machine base
Rigid one piece bed and base
6-way power feed and rapid traverse
Safety overload device on apron
Universal inch/metric gearbox
Inch/metric threading without change gears
22" wide bed width
30 HP main motor
