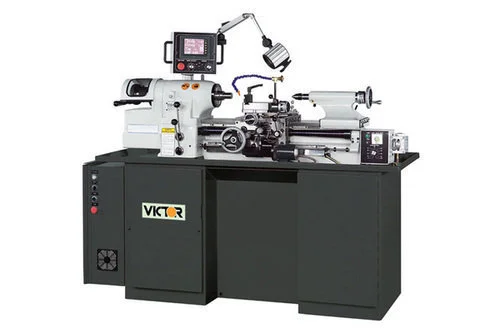

New VICTOR 618E | Precision Lathes

Description

High precision toolroom lathe with Digital Threading control is driven by a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quite. Easy to use LCD touchscreen to simplify threading operations by selecting target TPI or mm pitch on the screen. DRO capabilities are built-in as standard. By eliminating traditional threading gearbox, Victor 618e toolroom lathe is easy to maintain, yet provides superior accuracy and performance.

Digital Threading operations are microprocessor controlled and carried out by synchronized spindle speed and servo motor driven leadscrew
LCD touchscreen to select thread pitch (TPI or mm) with no gears to change
DRO functions integrated into LCD panel features linear scales on X & Z axis
Infinitely variable spindle speeds from 50 ~ 4,000 rpm
The spindle is mounted in high precision preloaded angular contact ball bearings
Hardened and ground alloy tool steel bed ways
Full bearing carriage with Turcite-B slideway bearing material between carriage and bed
Fast lever collet chucking with a single movement
Independent infinitely variable feeds control on carriage and cross slide
Automatic thread length control with fine adjustable stops for accurate threading
Quick-action tool post slide for threading is instantly cleared from work
5C lever type collet closer standard
3 HP frequency controlled motor (inverter drive)
