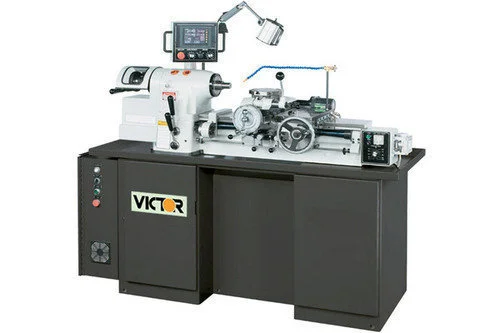

New VICTOR FHR-68E | Precision Lathes

Description

High precision Digital Threading technology chucking lathe comes with a smooth 3 HP frequency controlled motor that runs virtually vibration free and extremely quite. Easy to use LCD touchscreen to simplify threading operations by selecting target TPI or mm pitch on the screen. DRO capabilities are built-in as standard. Victor FHR-68e chucking lathe is built with extreme precision and performance in mind.

Digital Threading operations are microprocessor controlled and carried out by synchronized spindle speed and servo motor feed
LCD touchscreen to select thread pitch (TPI or mm) with no gears to change
DRO functions integrated into LCD panel features linear scales on X and Z axis
14" maximum distance from face of turret to spindle
The spindle is mounted in high precision preloaded angular contact ball bearings
Infinitely variable spindle speeds from 0 ~ 4,000 rpm
Fast lever collet chucking with a single movement
Preloaded ball bearing 8-station turret with indexing lever
Solid hardened and ground alloy tool steel bed
Independent electric variable speed
Full bearing carriage with Turcite-B slideway bearing surface
Hi/Low speed quick change lever for convenience
5C lever type collet closer standard
3 HP frequency controlled motor (inverter drive)
