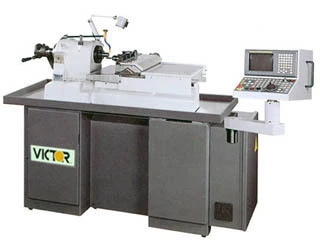

New VICTOR 606DCL | CNC Lathes

Description

Spindle runout within 50 millionths
• Main casting pieces are by Meehanite castings for superior dampening and rigidity
• Precision ballscrew on X, Z-axis
• Linear motion guides on X, Z-axis
• Steel telescopic way guards on Z-axis provide better protection
• X, Z-axis feed is driven by an AC servo motor
• X, Z-axis ballscrews directly coupled to AC servo motor, minimizing backlash
• Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
• 5C lever type collet closer
• 7.87” max swing
• 6” max turning diameter
• ∅ 1.25” diameter hole through spindle
• ∅ 1.06” 5C collet closer thru-hole capacity
• 0.1” quick-action compound slide travel
• 7.874” max X-axis travel
• 5.906” max Z-axis travel
• Rapid traverse: 787 in/min
• Spindle speeds (infinitely variable): 50 ~ 4,000 rpm
• Spindle nose: 5C / 4° Taper
• 1/8 HP coolant pump motor
• 3 HP inverter spindle motor
• Halogen work light
• Coolant system
• Set of leveling pads, screws, and nuts
• Operating manual and parts list
• Full one year parts warranty on machine and CNC control
