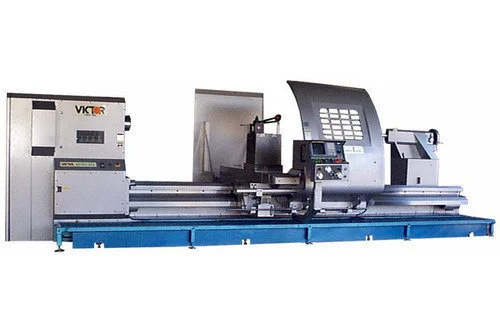

New VICTOR 50320DCL | CNC Lathes

Description

A powerful multi-function full CNC flatbed lathe, yet easy to use Teach-in / Playback feature allows duplicating extra identical parts in no time after initial part is machined. A user-friendly and versatile Graphic Conversational Machine Guidance provides flexibility to create programs without knowledge of G-code programming. DCL is as simple to operate as a manual lathe via convenience of electronic handwheels.

FEATURES:

Heavy duty hollow spindle CNC flatbed lathe, optional up to 24" spindle thru hole
Extra wide (28") hardened and precision ground bedways
Fanuc 20-TA CNC control system
Fanuc industry standard G-codes
CNC assisted manual machining
Teach-in / playback operation
Graphics conversational programming
Full CNC automatic operation
Tool radius and geometry operation
CNC controlled spindle
Constant surface speed (vector control)
Triple (3) electronic handwheels
Four (4) ranges of variable speeds with automatic gear change
Designed primarily for heavy duty turning operations with dramatic productivity
Massive high tensile Meehanite cast iron bed assures superior accuracy and rigidity for long lasting trouble-free operation
High precision spindle made from high quality alloy steel that is supported by large angular contact roller bearings to resist radial and axial load during heavy duty machining
High precision ballscrew to ensure backlash free transmission
Bed slideways are hardened, precision ground, and coated with Turcite-B for wear resistance
Forced lubrication of headstock gears
Auto lubrication system on all slideways and ballscrews
Built-in coolant system
Hardware overtravel limit switch for all travel directions and tailstock to prevent accidental crash
Powerful 40 HP high torque spindle motor for heavy duty machining

STANDARD FEATURES AND ACCESSORIES:
Automatic lubrication system
Triple (3) electronic handwheels
1-handwheel "run verify" function
High visibility fluorescent work light
Built-in coolant system
Constant surface speed
Run-time / parts counter
Tool nose radius and ballscrew pitch error compensation
Aloris super precision tool post, EA series (1-1/2" tool shank)
