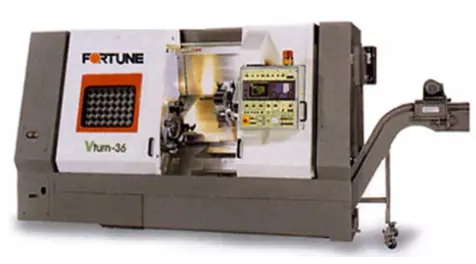

New VICTOR VTURN-36 (CV) | CNC Lathes

Description

Genuine 45° single block slant bed for maximum structure rigidity.
Maximum turning length of 86.6″.
Rapid feed rate of 787/787 ipm.
Spindle nose A2-11 with Kitagawa hydraulic 15″ chuck for bar capacity 91mm (3.58″).
Fanuc 50 HP spindle a30/6000i and Z-axis power 9.4 HP by a30/3000i.
Z-axis ballscrew diameter of 50mm (1.97″).
Box slideways with hardness HRC 55 for heavy cutting.
A two-step gearbox is included to further enhance the cutting torque at low rpm.
A high-volume coolant flush onto the Z-axis cover helps reduce the chip build-up inside the machine.
An overhang-moving CRT allows more space for the machine operator and can avoid the high freight on transportation.
