New

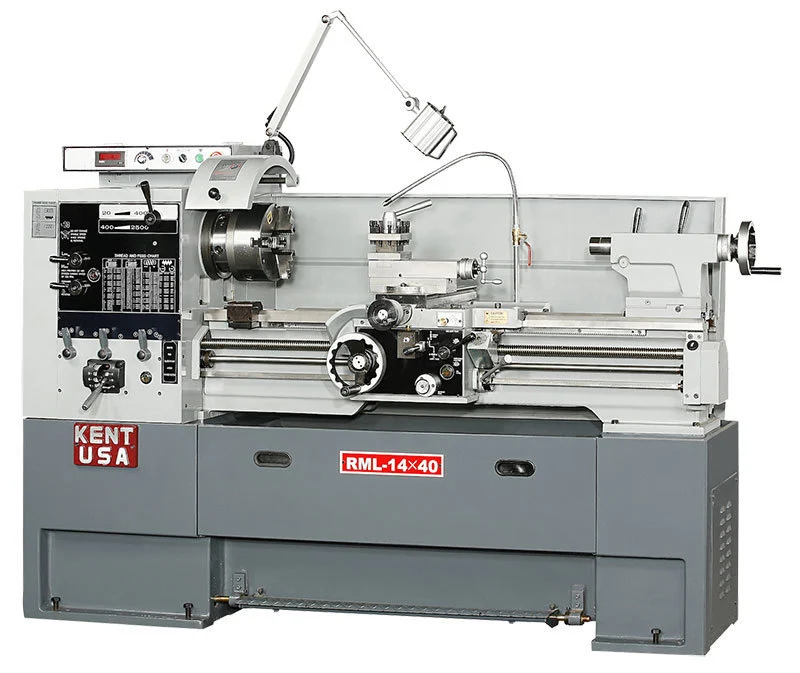

KENT USA RML-1440VT
Gap Lathes
Features
5 HP main spindle motor using frequency drive and capable of running using single phase power
Digital display 20–400-2500 infinitely variable spindle speeds
Hardened and ground gears and bedways
Cast iron machine bedways with full one piece cast base and front loading chip tray for easier cleaning
Foot brake and T-Slot compound Inch/metric reading on dials
Inch/metric ruler on tailstock quill
ISO 9001 certified manufacturer
| Swing | 14.188" |
| Gap Swing | 21" |
| Centers | 40" |
| Spindle Bore | 2.0625" |
| RPM | 2,500 RPM |
| Power | 5 hp |
| Taper | MT#6 |
Swing Over Bed 14-3/16"
Swing Over Cross Slide 8-3/8"
Swing Over Gap 21"
Width of Bed 10-1/4"
Distance Between Centers 40"
Cross Slide Travel 8-11/16"
Top Slide Travel 5-1/2"
Spindle Bore 2.1"
Spindle Speeds 2
Spindle Speed Range 20-400-2500 RPM
Through Hole Diameter 2-1/16"
Spindle Nose D1-6 Camlock
Spindle Bore Taper MT#6
Thread – Standard (Whit-worth) 45 (2-72) TPI
Thread – Metric Pitch 39 (0.2-14) mm
Longitudinal Feed 0.002"–0.067"
Cross Feed 0.001”-0.034” in/rev
Lead Screw Diameter 1-1/8"
Threading Pitch 4 TPI
Quill Travel 6.5"
Quill Diameter 2"
Quill Bore Taper MT#4
Main Motor 5 HP
Coolant Pump Motor 1/8 HP
Machine Dimension 81" x 36" x 60"
Packing Dimension 87" x 42" x 66"
Machine weight 3190 LBS
Packing weight 3630 LBS
Standard Accessories
3-jaw chuck (9″)
Steady rest
Follow rest
4-position tool post
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
Optional Accessories
4-jaw chuck (10″)
Digital Readout System (View Brochure)
Royal spindle type live center
BTC 3-jaw chuck with back plate
Taper turning attachment
Rustlick coolant
Micro carriage stop
Face plate (12″ D1-6)
Transformer for 440V power (5 KVA)
