Summit Variable SPEED 20-4 x 40A - Demo SN-C1-282M
Have one to sell?
$46,990.00 USD
$35,500.00 USD
ConditionUsed
1 available

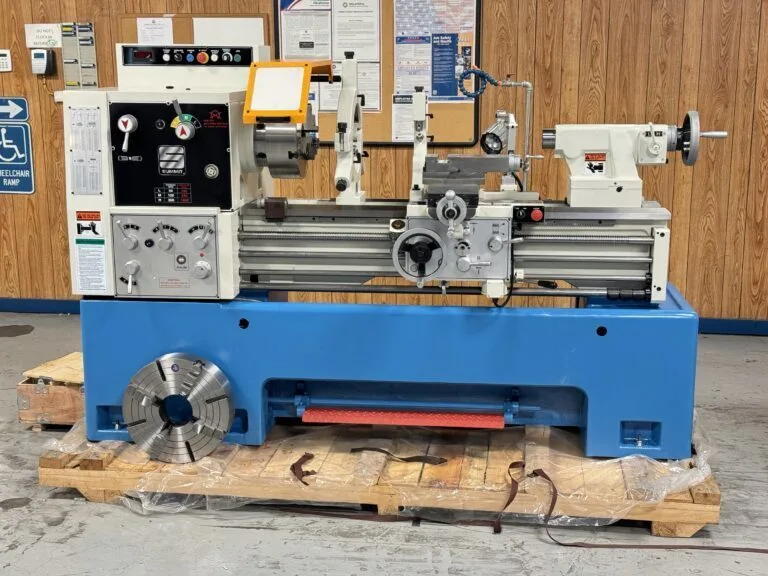

NEW- Demo- showr-room - 20-4"x 40A- VS Series Lathe: Equipped with the following Standard Accessories: Steady Rest* Follow Rest- 12:-3 Jaw Chuck,16" 4 Jaw Chuck - Taper attachment*Thread Dial*Work-light*Full length Splash Guard. " SAVE $11,490.00- As Equipped -Contact Easton Machinery Inc for additional Accessory Pricing if required.
LIMITED WARRANTY
Swing over bed:20"
Swing over Cross Slide: 16.6"
Swing over Gap; 30"
Gap Length:11.75
Spindle Speed: Inf. Variable- 3 Ranges 50-1500 RPM
Spindle hole:4"
Threads per inch: 37- 2-56
Metric Threads:(41)- .2-14
Diametral: (19) 8-44
Module Pitch: (18) .3 - 3,5
Long. feeds: (32) .0015: - .0400"
Cross Feeds: (32) .0008"- .0200"
Lead screw Dia/Range: 1.375" 4TPI
Feed rod dia: 1"
Main Motor: 10HP 220/3/60
Coolant Pump: 1/8 HP
Standard Accessories include
Steady Reat- Follow Rest 12" -3 Jaw Chuck- 16" - 4 Jaw Chuck- taper attachment , thread-dial, Work Light, Full Length Splash Guard
AVAIABLE OPTIONS:
Newall DRO Package Installed: P.O.R.
Aloris Quick Change Tool Post: P.O.R
Transformer for other Voltages
12" steel Body Precision Chuck w/ 2pc Jaws in Lieu of Std Chuck
