2024 Summit Precision Engine Lathe 28-4 x 80cc- European Built
Have one to sell?
ConditionUsed
1 available

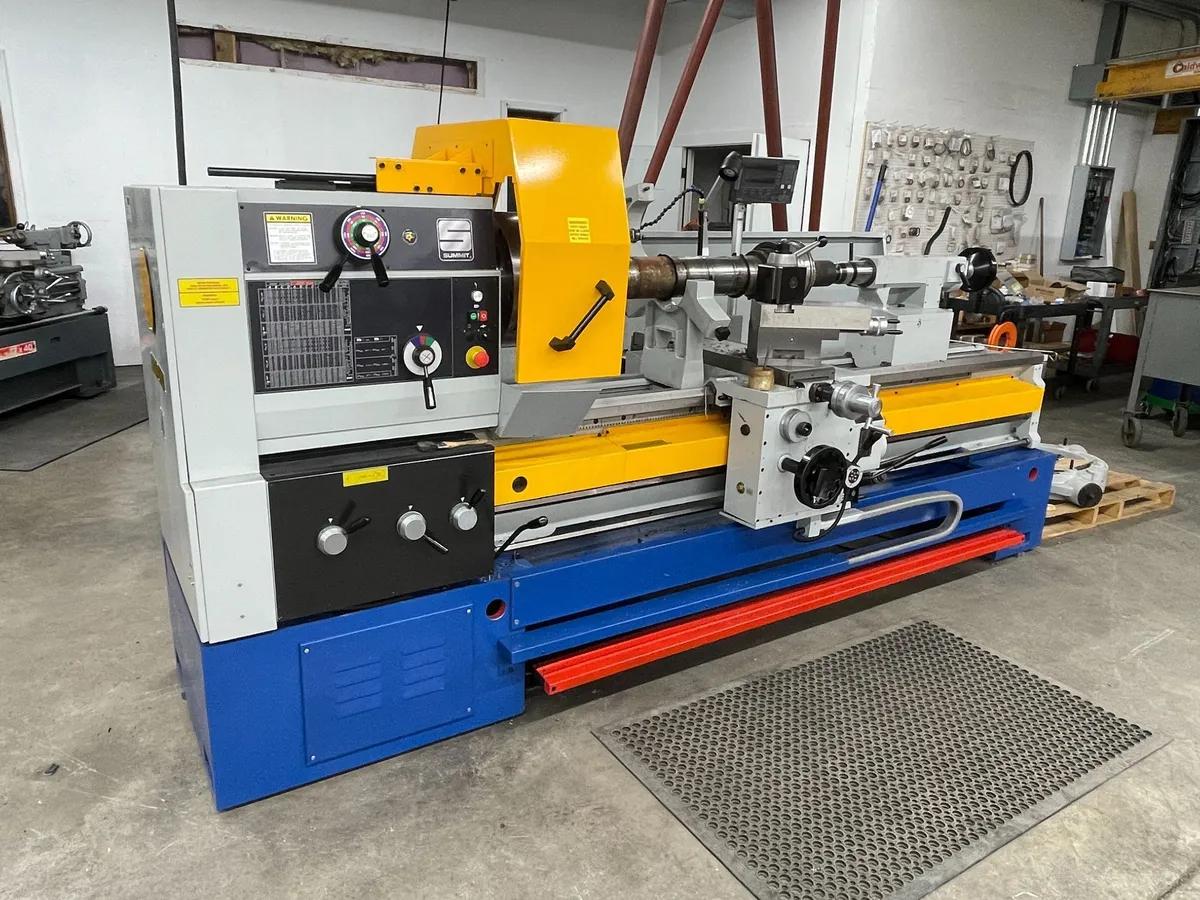

Used 2024 Precision Summit Model B- 28-4 x 80 cc ( European Built) Engine lathe Equipped with FAGOR DRO 2 Axis Package , Steady rests, Follow rest, Extra Capacity Steady rest, Inch/Metric Threading- Taper Attachment 15HP Main Motor, 20-1250 RPM
LOW OPERATING HRS - PRIVATE MACHINE SHOP- EXCELLENT LIKE NEW CONDITION
Swing Over Bed: 28-1/2"
Swing Over Cross Slide: 19-5/8
Spindle Speeds: (21) 20-1250
Spindle Hole: 4-1/8"
Spindle Nose: D1* Camlock
Headstock center: #6MT
Threads per inch: (64) 1/4-60
Metric: (64) .5-120
Module: (64) .125 - 30
Diametral pitch: (64) 1-240
Long. Feeds: (124) .00145 - .44474
Cross feeds(56) .0007 -.22237
Leadscrew Dia. 2" / 2TPI
Feed rod Dia. 2"
cross slide Travel: 15-1/4"
Compound rest trave;" 5-3/8"
Graduations of apron handwheel: .020
Cross Slide handwheel: .002 9Dir. Read)
Tailstock Travel Spindle Barre;" 9-1/2"
Tailstock Barrel Dia> 3-1/2"
Taper Of Tailstock: 3% MT
2 Speed Tailstock: 1:1 4:1
Taper Attachment: +/-10 degrees
Max.Turning Length per setting: 15-3/4"
16" Steel Body 3 Jaw Chuck w/ 2pce Jaws
Std Steady rest 3/4" -7-3/4"
Extra capacity: Steady Rest: 7-3/4 - 16-3/4"
Fagor 2 Axis DRO
Coolant System
Taper attachment
Thread Dial-
Carriage Stop
Work-light
Full length Splash Guard
**Std Features**
Hardened & Ground Bedways-
4 way rapid traverse
Feed reversing at the apron
Mechanical Disc Clutch
Force Lube to Headstock- Carriage- Bedways
Crossfeed & Threading interlock
Precision 3 Spindle brgs
4-1/8" SPINDLE HOLE
